VanityPRO 4xRCA S/PDIF output board

Spare output board for the Vanity^PRO.

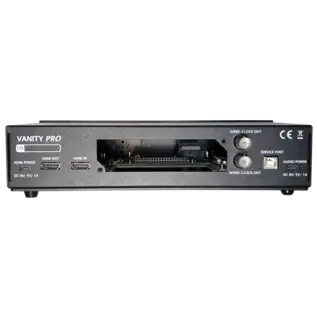

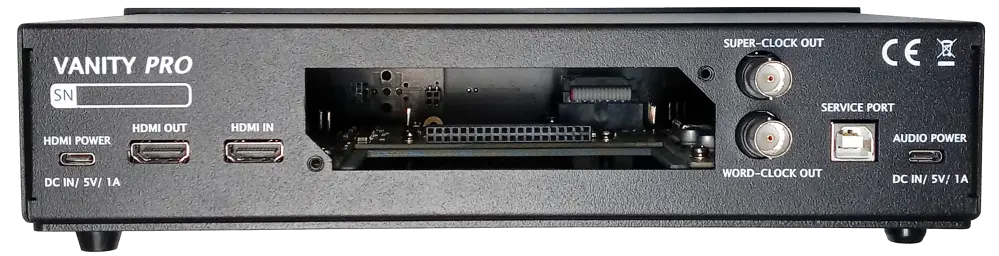

The Vanity^PRO system supports five different digital audio output boards, each offering a variety of connector options.

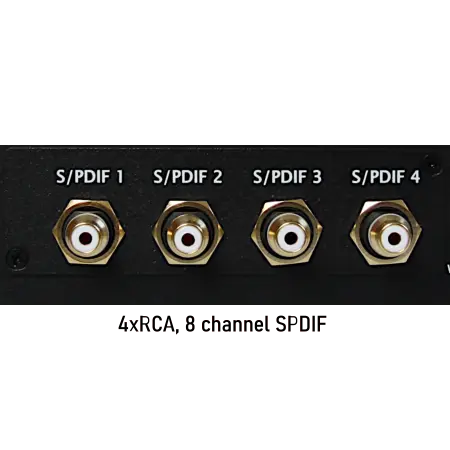

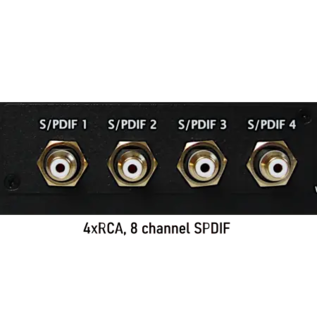

8-Channel 4xRCA Option

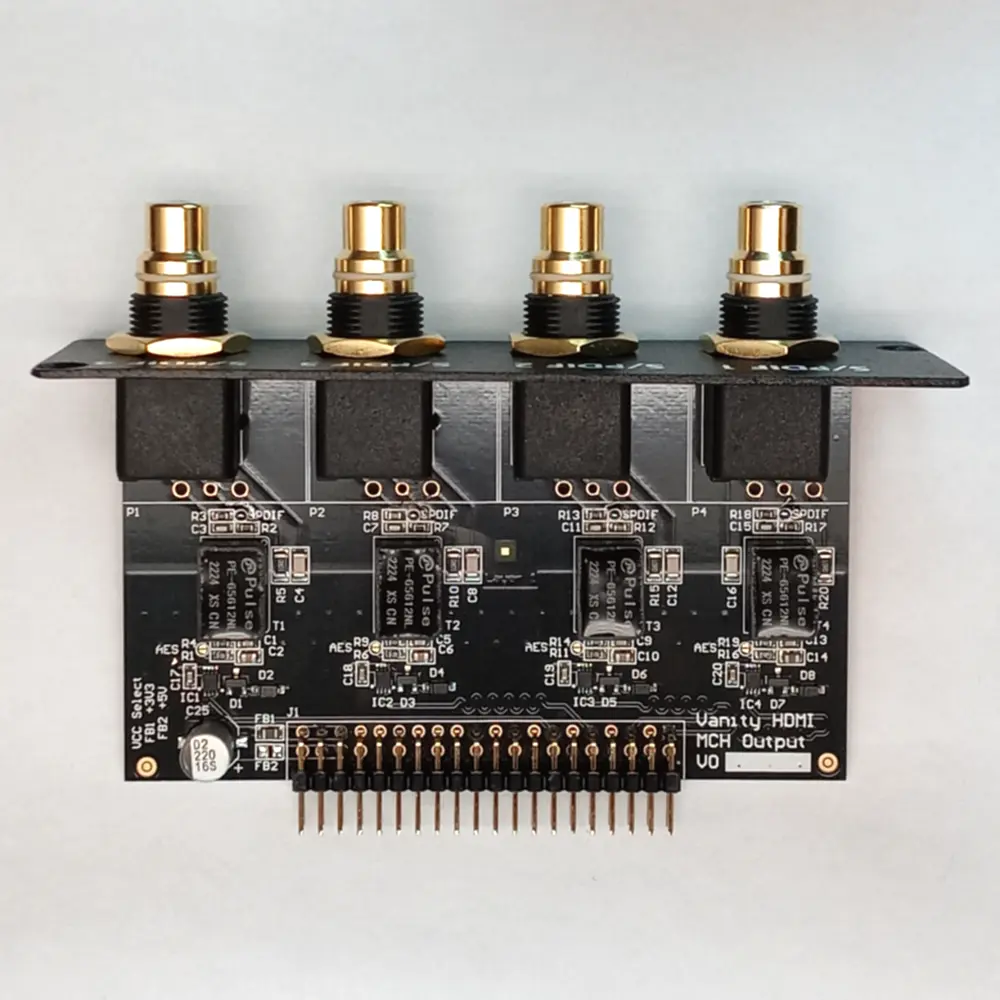

This is a multi-channel output board, each connector carries two audio channels in S/PDIF format.

Channel mapping for the outputs:

• 1: FL/FR (Left/Right)
• 2: C/LFE (Center/Subwoofer)
• 3: SL/SR (Surround Left/Surround Right)
• 4: SBL/SBR (Surround Back Left/Surround Back Right)

RCA output impedance: 75Ω

More information can be found in the Vanity^PRO FAQ
